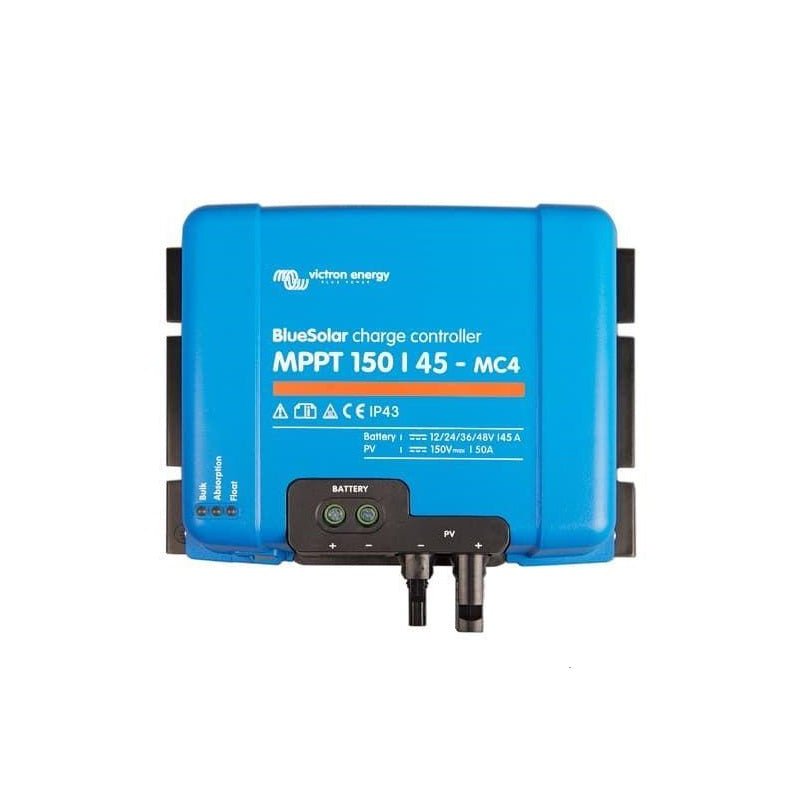

Victron BlueSolar MPPT 150/45-MC4 Charge Controller

The Victron Energy SCC115045222 offers an advanced solar energy management solution with its ultrafast Maximum Power Point Tracking technology. This charge controller optimizes energy harvest by improving performance by up to 30% compared to traditional PWM controllers, specifically in varying light conditions, ensuring efficient solar power utilization.

Product Features

Ultrafast MPPT

Harness the full potential of your solar panels with the ultrafast Maximum Power Point Tracking feature, particularly beneficial in conditions where light intensity fluctuates, maximizing energy harvest using the Victron Energy SCC115045222.

Advanced Power Point Detection

This controller excels in partial shading conditions, ensuring that it locks onto the optimal maximum power point, rather than a local peak, thereby enhancing energy capture.

High Conversion Efficiency

With no need for a cooling fan, enjoy a remarkable efficiency exceeding 98%, delivering full output up to 40°C, ensuring reliable performance and energy savings.

Programmable Charge Algorithm

The charge controller features a fully customizable charge algorithm, with eight preconfigured options, giving you flexibility and control over your solar setup.

Comprehensive Protection

Designed with extensive electronic protections, including over-temperature protection and power derating, as well as safeguards against PV short circuits and reverse polarity.

How It Works

The charge controller efficiently manages solar energy by using its components to maximize power output and enhance battery charging. It intelligently adapts to various environmental conditions, ensuring optimal performance.

Temperature Compensation

Equipped with an internal temperature sensor, it adjusts the charge voltage for temperature variations, enhancing battery life and performance.

Data Communication

With VE.Direct port, integrate seamlessly with your system, offering real-time data access via Bluetooth-enabled devices or the Color Control GX.

Flexible Enclosure

The robust design with a high protection category ensures lasting durability and reliability in various environmental conditions.

Specifications

Manufacturer	Victron Energy
MPN	SCC115045222
Rated Charge Current	45A
Nominal PV Power	650W (12V) / 1300W (24V) / 1950W (36V) / 2600W (48V)
Maximum PV Short Circuit Current	50A
Maximum Efficiency	98%
Self-Consumption	12V: 20 mA / 24V: 15 mA / 48V: 10mA
Charge Voltage ‘Absorption’	Adjustable from default: 14.4 / 28.8 / 43.2 / 57.6V
Operating Temperature	-30 to +60°C
Dimensions (h x w x d)	130 x 186 x 70 mm
