Victron Energy CIP137125010

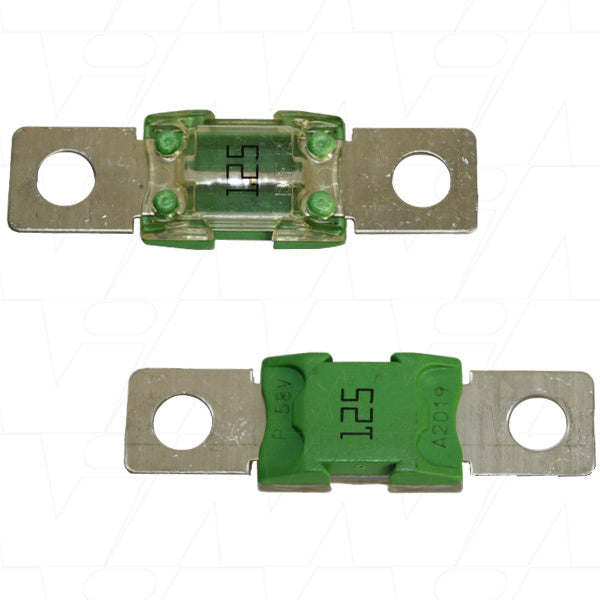

The Victron MEGA-fuse 125A/58V is an essential component designed for high-performance 48V applications. This product is meticulously crafted by Victron Energy to ensure safety and reliability in your electrical systems. Featuring a robust construction, this fuse provides excellent protection for your equipment, significantly reducing the risk of overloads and short circuits. Perfect for demanding environments, this fuse helps maintain the efficiency and longevity of your electrical setup.

Product Features

Dovetail Feature

The dovetail feature of the Victron MEGA-fuse holder allows for easy interlocking of multiple fuse holders. This design not only simplifies the installation process but also enhances the overall organization of your fuses. By using this dovetailing method, you can effectively manage space and improve access to the fuses, ensuring that maintenance and replacements can be performed swiftly and effortlessly.

High Current Bus Bar

Designed with a five-position high current bus bar capable of handling up to 500 A, the Victron MEGA-fuse holder is engineered for high-capacity applications. This bus bar facilitates a single M10 input connection while enabling users to connect multiple high-power Multi or Quattro inverter/chargers, making it a pivotal component in power management systems.

Heavy Duty Construction

Constructed with durable materials, the Victron MEGA-fuse 125A is built to withstand harsh environments and high current loads. The sturdy design ensures long-lasting performance and reliability, which is critical for protecting your valuable electrical systems.

Compatibility with Multiple Fuses

This fuse holder is compatible with various fuses, including MEGA fuses, MIDI fuses, and ANL fuses, providing flexibility for different applications. This feature allows users to choose the appropriate fuse type based on their specific needs, ensuring optimal protection and functionality for various systems.

Ease of Use

Both the single fuse holder with and without cap versions are designed for user convenience. The clear labeling and secure connections make it easy to install and remove fuses. This user-friendly design helps minimize downtime and enhances the overall user experience with Victron products.

How It Works

The Victron MEGA-fuse operates effectively within electrical systems by providing a crucial line of defense against overload conditions. When the current exceeds safe levels, the fuse will blow, disconnecting the affected circuit and preventing potential damage. The construction and design of the fuse ensure that these protective actions occur swiftly and reliably.

Fuse Mechanism

The operating mechanism of the MEGA-fuse is straightforward yet effective. When an overload occurs, the fuse element melts under excessive heat, breaking the circuit. This action protects the wiring and equipment from potential damage.

Connection Points

The bus bar connections are designed to support both input and output applications, allowing for seamless integration within existing electrical infrastructures. This connectivity helps manage the distribution of power and reduces the risk of system failures.

Indicator Features

Some fuse holders come equipped with indicator features that signal when a fuse has blown. This alert system allows for quick identification of issues, enabling timely servicing and reducing the risk of prolonged system downtime.

Specifications
