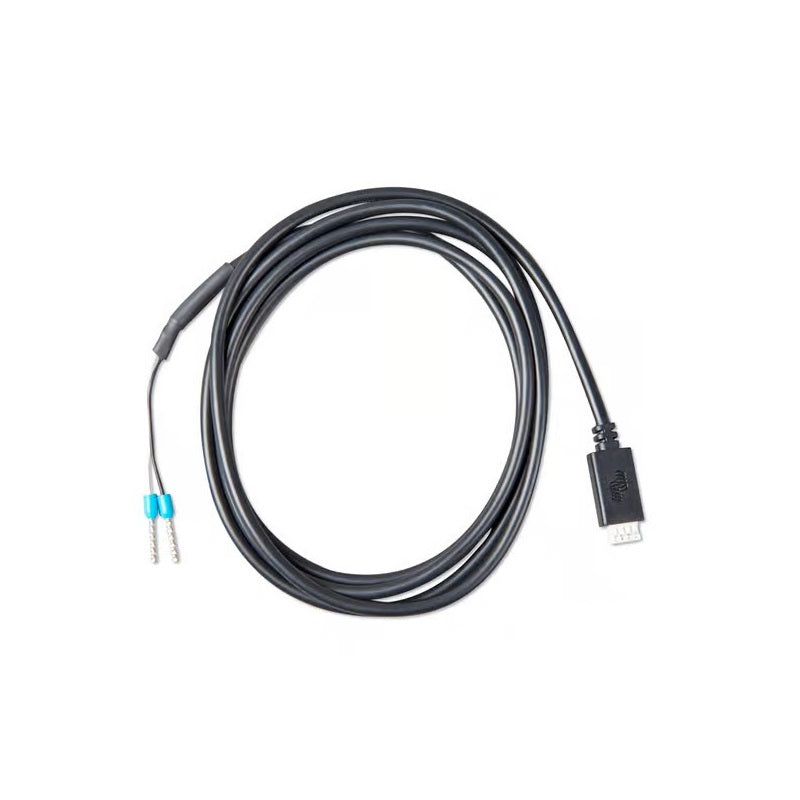

Victron Energy ASS030550500

The Victron VE.Direct TX digital output cable, part number ASS030550500, is designed to enhance the functionality of your solar energy system by providing vital load output capabilities. With this product, users can integrate solar lighting, virtual load output, and energy metering into existing solar charger setups. It effectively connects the solar charger to various outputs, thus improving energy management and efficiency in renewable energy applications.

Product Features

Solar Lighting Functionality

This cable allows for efficient lighting applications in solar energy systems. By connecting to the PWM light-dimming terminal of an LED driver, it enables dimming of lights to reduce power consumption while maintaining sufficient light availability, even in low-state battery conditions, ensuring practical benefits for users relying on consistent lighting.

Virtual Load Output Capability

With the VE.Direct TX digital output cable, users can seamlessly add load output functionality to larger solar chargers, such as the MPPT 100/30 and beyond. This feature allows for the management of DC loads even when the solar charger doesn’t naturally support them, enhancing usability and flexibility in electric load management.

Intuitive Configuration Through VictronConnect App

The setup process is simplified with the VictronConnect app, which allows users to configure Tx port functions, load operation modes, and streetlight functions easily. Adjusting these settings helps tailor the cable’s functionality to the user’s specific needs, making it a versatile product for various energy management tasks.

Compatibility with LED Drivers

Compatible with multiple LED drivers, including models like RECOM RBD-12 and Glacial Power series, this cable ensures that users can easily find solutions that work best for their specific applications. This feature significantly expands the product’s usability across different lighting systems.

Reliable Energy Metering

The VE.Direct TX digital output cable can integrate an energy metering function, sending a pulse to an energy meter each time solar generation reaches 0.01kWh. This capability provides precise monitoring of energy production, empowering users to optimize their energy consumption effectively.

How It Works

The VE.Direct TX digital output cable operates by linking between the solar chargers VE.Direct port and various output devices. Whether controlling LED dimming or creating load outputs, this cable utilizes simple connections, ensuring straightforward integration into existing solar systems.

Connection to Solar Charger

The connection to the solar charger is made via the VE.Direct connector, facilitating efficient data transmission and ensuring reliable performance in energy management tasks.

Load Output Management

This component is crucial in managing the load output as it connects to a BatteryProtect or solid-state relay, allowing for effective load control and enhancing the systems overall efficiency.

Monitoring and Feedback

Through its operational setup, the cable provides real-time feedback on energy consumption. This feedback loop is vital for users to make informed decisions regarding their energy usage and optimize performance.

Specifications
