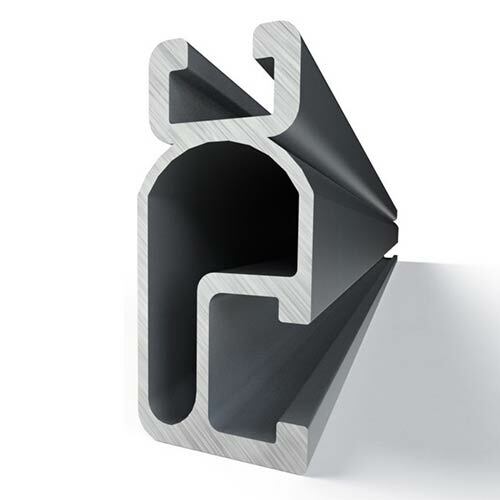

Unirac SolarMount 246 Mill Light Rail – Part No. 315246M

The Unirac SolarMount 246 Mill Light Rail is expertly designed to provide a durable and reliable solution for solar panel installations. This high-performance light rail offers outstanding structural integrity, making it efficient for various mounting applications. Targeting professionals in the solar industry, the product utilizes premium materials, ensuring long-lasting performance and resilience against harsh environmental conditions.

Product Features

Sturdy Beam Design

The Unirac 315246M features a robust beam height of 2.5 inches, which provides excellent load-bearing capacity. This design ensures stability and longevity for solar installations, accommodating heavy solar panels without compromising performance.

Lightweight Construction

Weighing approximately 0.811 pounds per linear foot, the SolarMount beam is designed to maintain a lightweight profile while providing strength and durability. This low weight facilitates easier handling and installation while ensuring reliable support for solar modules.

Optimal Cross Sectional Area

With a total cross-sectional area of 0.676 square inches, the Unirac SolarMount beam maximizes its strength-to-weight ratio. This feature allows for better performance during adverse weather conditions, enhancing the overall reliability of solar panel systems.

Enhanced Moment of Inertia

The moment of inertia on the X-axis is 0.464 inch^4, which contributes to the beam’s resistance to bending and deformation. This characteristic ensures the SolarMount beam can withstand significant loads without compromising structural integrity.

User-Friendly Installation

The Unirac SolarMount 246 beam includes various slots for T-bolts and clips that simplify installation. This thoughtful design allows users to quickly and efficiently mount solar panels, saving installation time and reducing labor costs.

How It Works

The Unirac SolarMount is a meticulously engineered solar mounting system designed to securely attach solar panels to various surfaces. Its design incorporates components that work together seamlessly, providing a secure and efficient setup that supports solar energy technologies.

Beam Connection

Each beam connection is engineered to provide strength and stability. This connection system ensures that solar panels are held firmly in place, maximizing energy efficiency and safety during operation.

Module Retention Mechanism

The Unirac system includes specialized clips, such as the bottom-up module clip and mid clamp for secure attachment. These components are designed to withstand significant tension and transverse loads, ensuring the solar modules remain securely fastened.

Durable Materials

Made from high-quality extruded aluminum alloys, the SolarMount beam ensures resistance against corrosion and deformation. This durability extends the lifespan of both the mounting system and the solar panels attached to it.
