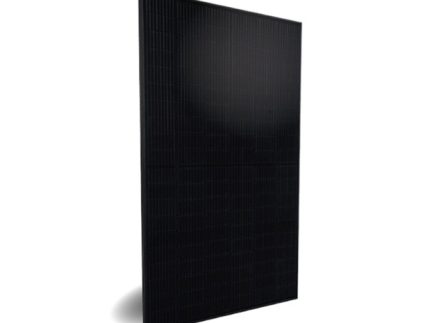

Sonali Black On Black 120 Half-Cell Mono Solar Panel – SS-M-450-B

The Sonali Solar SS-M-450-B is designed to provide optimal solar energy conversion with unmatched efficiency, making it an exceptional choice in the solar module market. Leveraging cutting-edge technology, this solar panel is perfect for maximizing energy output even in low-light conditions, ensuring consistent performance for residential and commercial applications.

Product Features

Advanced Electroluminescence Testing

Each panel undergoes rigorous Electroluminescence (EL) testing to ensure that they are free from micro cracks, thereby guaranteeing long-lasting durability and reliability.

High Efficiency in Diffuse Light

The high module efficiency is maintained even under diffuse light conditions, which allows for consistent and reliable energy production throughout the day.

Compliance with Global Standards

Manufactured in accordance with comprehensive global standards including MNRE, IEC, UL, and ISO certifications, ensuring every unit meets the highest quality requirements.

Versatile Application Possibilities

This panel is ideally suited for various applications including rooftops, carports, solar farms, balconies, and much more, providing flexibility in its usage.

Durable and Long Warranty

Boasting a robust construction, the product comes with a 25-year performance guarantee, ensuring prolonged operational lifetime and consistent energy yield.

How It Works

The Sonali Solar SS-M-450-B operates by capturing sunlight through its high-efficiency monocrystalline cells, converting it into electricity for diverse applications. With a focus on maximizing efficiency, this panel integrates seamlessly into solar energy systems to enhance performance reliably.

Monocrystalline Cell Efficiency

The advanced 182×91 mm monocrystalline cells offer superior sunlight conversion rates, contributing effectively to overall system efficiency.

Durable Anodized Aluminum Frame

The black anodized aluminum alloy frame provides robust structural support, ensuring the panel’s longevity and resilience against environmental factors.

Protective Tempered Glass

Covered with tempered and low iron glass with anti-reflective coating, enhancing light absorption while protecting the internal components from damage.

Specifications

Nominal Maximum Power (Pmax/W)	450
Optimum Operating Voltage (Vmp/V)	35.0
Optimum Operating Current (Imp/A)	12.86
Open Circuit Voltage (Voc/V)	41.6
Short Circuit Current (Isc/A)	13.66
Dimensions (mm/inches)	1910x1134x35 / 75.2×44.65×1.38
Weight (kg/lbs)	24 / 52.91
Junction Box	IP68, 3 Bypass Diodes
Solar Cable	4mm², 400mm Positive, 300mm Negative
Connectors	MC4 Compatible
