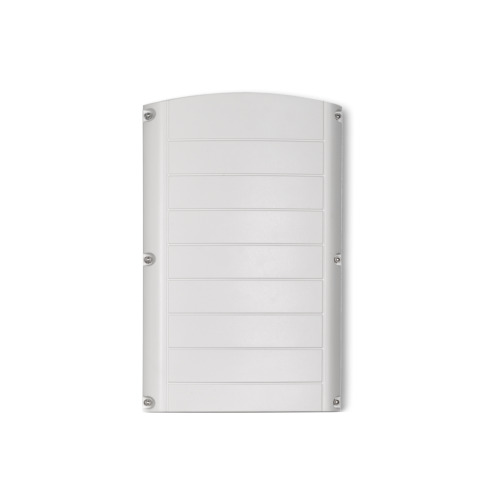

Solaredge 3-PH Secondary Inverter – SESUK-USR0INNN4
MPN Number:
SolarEdge Three-Phase Inverter with Synergy Technology for 208V Grid
The SolarEdge SESUK-USR0INNN4 is an advanced three-phase inverter designed for North American 208V grids, incorporating cutting-edge Synergy Technology. This inverter is tailored to maximize energy production while ensuring seamless integration with power optimizers. Ideal for residential and commercial settings, it is engineered to provide superior efficiency, easy installation, and reliable performance.
Product Features
Energy Optimized Performance
With its ability to handle up to 150% DC oversizing, the SolarEdge SESUK-USR0INNN4 significantly boosts energy output. Including the target keyword ensures this feature delivers remarkable energy efficiency for varied setups.
Effortless Installation Process
This inverter supports quick installations with its lightweight design, optimized for two-person assembly, enhancing ease and efficiency during setup.
Superior Safety Measures
Integrated DC safety switches and rapid shutdown functionality adhere to NEC standards, promising robust safety enhancements.
Seamless Communication
Equipped with RS485, Ethernet, and optional cellular GSM interfaces, this inverter ensures comprehensive monitoring and control capabilities.
Environmentally Robust Construction
The SolarEdge SESUK-USR0INNN4 features a rugged design rated NEMA 3R, providing dependable protection in diverse environmental settings.
How It Works
This three-phase inverter transforms DC power from solar panels into AC power for standard grid utilization. Its modular design allows flexible operation, optimized through Synergy Technology for enhanced grid interaction and system resilience.
Optimizing Synergy Technology
Synergy Technology enables each unit to operate independently, increasing system uptime while simplifying maintenance tasks.
Advanced Monitoring Systems
Real-time module-level monitoring via Ethernet or cellular GSM promotes proactive management of energy production and diagnostic processes.
Efficient Cooling System
A user-replaceable fan ensures that the inverter maintains optimal operational temperatures, promoting extended equipment longevity.
Specifications
| Rated AC Power Output | 43200 VA |
| Maximum AC Power Output | 43200 VA |
| AC Output Voltage Range (L-N) | 105-132.5 Vac |
| AC Output Voltage Range (L-L) | 183-229 Vac |
| AC Frequency Range | 59.3 – 60.5 Hz |
| Maximum Continuous Output Current | 120 A |
| Maximum DC Power (Inverter/Unit) | 64800 / 21600 W |
| CEC Weighted Efficiency | 97 % |
| Maximum Input Voltage (DC+ to DC-) | 600 Vdc |
| Operating Temperature Range | -40 to +140 ËšF |
