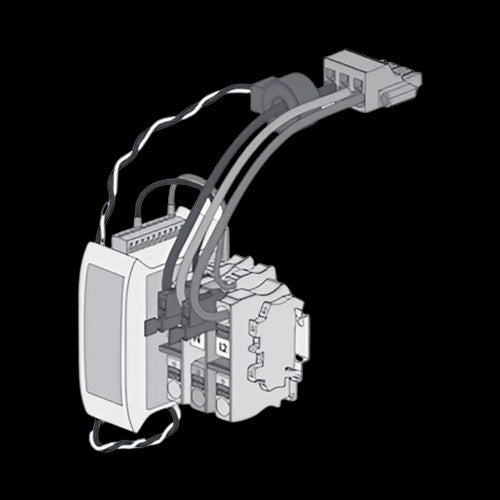

SMA Solar RGM05KIT-US-10

The SMA Solar Revenue Grade Meter Kit, model RGM05KIT-US-10, is designed to provide accurate and reliable energy production monitoring for your solar system. With its impressive 0.5% measurement accuracy and seamless compatibility with SMA Sunny Boy inverters, this kit ensures efficient management of solar energy production. Its easy installation process allows both technicians and homeowners to easily set up this device inside their inverter, making it an essential tool for optimizing solar asset performance.

Product Features

High-Precision Energy Metering

The SMA Solar Revenue Grade Meter Kit offers revenue-grade energy metering with ANSI C12.20 compliance, ensuring that your energy production is measured with utmost precision. This feature guarantees that the data collected aligns with industry standards, providing users with confidence in their solar energy output assessments.

Compact and Versatile Design

Designed with convenience in mind, this energy meter features a compact size that allows easy integration into the SMA Sunny Boy inverter. Its ultra-compact DIN rail mounting design simplifies the installation, making it an ideal choice for both new and existing solar energy systems.

Comprehensive Energy Data Collection

The kit not only measures active, reactive, and apparent power but also tracks grid voltage and frequency. This abundance of data enables users to monitor system efficiency and make informed decisions regarding energy management and optimization.

Easy Plug-and-Play Setup

With a plug-and-play approach, the SMA Revenue Grade Meter Kit ensures a hassle-free installation experience. The prewired and preassembled nature of the kit means that users can quickly set up the system, minimizing downtime and maximizing energy production right from the start.

Enhanced Communication Capabilities

This revenue meter supports Modbus RTU communication, allowing for streamlined integration with SMA’s Cellular LTE Modem Kit or RS485 Module. This feature ensures that real-time energy data can be accessed conveniently through the Sunny Portal for effective solar asset management.

How It Works

The SMA Revenue Grade Meter Kit operates by integrating directly with the SMA Sunny Boy inverter, capturing vital energy metrics. It utilizes advanced sensing technology to measure energy output with high accuracy and relays this information back to the system for tracking and analysis. This integration enables both real-time monitoring and long-term performance planning for system users.

Inverter Integration

This component connects seamlessly with the Sunny Boy inverter, ensuring that all collected data is accurately represented and easily accessible for users. This integration is crucial for effective solar monitoring and management.

Data Communication Module

The kit utilizes a communication module that facilitates data transfer between the meter and external interfaces. This component enables users to receive updates and insights via the Sunny Portal, enhancing the user experience.

Measurement Sensing Technology

The advanced sensing technology within the meter ensures detailed and reliable energy measurements. This contributes significantly to the overall performance and accuracy of solar production monitoring. Users benefit from immediate feedback on their energy output.

Specifications
