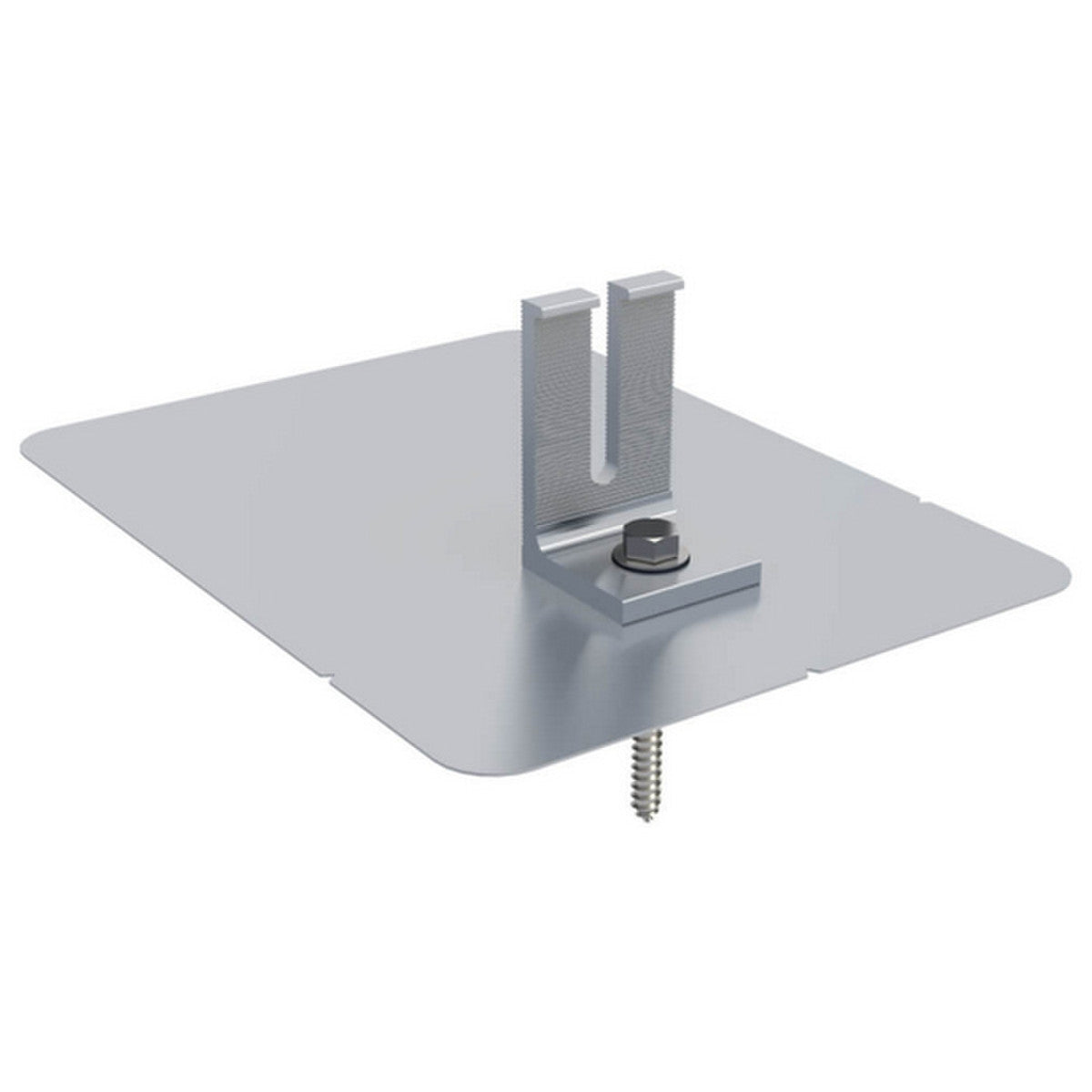

Quick Mount QM-LM-01-M1

The Quick Mount L-Mount, part number QM-LM-01-M1, is designed to provide reliable roof protection with essential features tailored for quick and effective installation. Its open-slotted L-Foot attachment allows for single-bolt installation on composition shingle roofs, ensuring maximum waterproofing through its innovative Elevated Water Seal Technology. This product is equipped with a structural screw option that enhances strength, offering a comprehensive solution for rooftop installations.

Product Features

Innovative Elevated Water Seal Technology

The patented Elevated Water Seal Technology integrated into the L-Mount’s design ensures that water is effectively diverted away from critical roof penetration points. This feature is key to maintaining roof integrity and preventing leaks, making the Quick Mount L-Mount an essential choice for securing solar panel systems.

Versatile Hardware Options

Offering both lag bolt and structural screw installation options, the Quick Mount L-Mount accommodates different building requirements. Each hardware option is complemented with a pre-installed EPDM bonded sealing washer to prevent any water intrusion, ensuring the longevity and durability of your rooftop installation.

Open-Slotted L-Foot Design

This feature allows for quick and adaptable rail positioning with 360 degrees of rotation, accommodating various racking systems seamlessly. The open-slot design facilitates easy adjustment for contractors, making installation faster and more efficient.

Robust Aluminum Flashing

Crafted from 6000 series aluminum, the 9×12″ flashing with rounded corners is a standout feature that provides excellent protection against water infiltration. Its alignment guides make installation intuitive while ensuring compatibility with existing shingles.

Comprehensive 25-Year Warranty

With a commitment to quality, the Quick Mount L-Mount comes with a 25-year warranty, guaranteeing it is free from impairing defects. This assurance adds peace of mind for customers concerned with long-term roof performance and product reliability.

How It Works

The Quick Mount L-Mount operates by securely attaching to existing roofing structures using either lag bolts or structural screws. The design minimizes the risks of leaks and water damage by elevating the sealing points above potential water pathways. This method combines advanced engineering with practical installation techniques to optimize performance.

Sealing Washer Component

The pre-installed sealing washer guarantees a strong, watertight fit during installation, ensuring that homes remain protected from water intrusion. This enhances the overall effectiveness of the mounting system.

L-Foot Functionality

The L-Foot component is integral to the installation as it provides stability and adaptability for the mounting rail. Its ability to rotate allows for precise alignment with solar modules or other hardware, ensuring reliable performance.

Flashing Mechanics

The flashing component plays a crucial role in preventing leaks. Its design allows it to slide beneath shingles, maintaining compatibility with different roofing styles while enhancing the overall waterproofing capabilities of the L-Mount system.

Specifications
