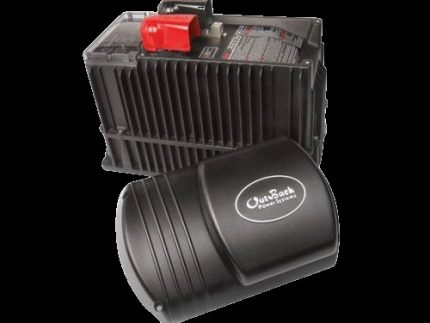

Outback Power 3kW Hybrid Inverter Charger for 48V Systems

The Outback Power FXR3048A-01 Inverter Charger is engineered for optimal off-grid and grid-tied capabilities, providing reliable power management for diverse energy needs. Designed to endure harsh environmental conditions, this inverter charger ensures consistent performance for mission-critical applications. Its versatility and easy installation make it ideal for both residential and commercial settings, supporting a wide range of battery chemistries for comprehensive energy solutions.

Product Features

Engineered for Unmatched Durability

Experience unmatched reliability with the Outback Power FXR3048A-01, crafted to withstand extreme temperatures, humidity, and corrosive environments, ensuring continuous operation in any setting.

Modular and Flexible Design

This inverter charger supports modular and stackable installations, facilitating up to nine units for three-phase and up to ten units for single-phase operations, enhancing scalability and adaptability in power systems.

Advanced Battery Support

With Advanced Battery Charging (ABC) capabilities, this unit accommodates various battery types, including lithium-ion and flow chemistries, ensuring seamless integration into any power storage scenario.

Highly Efficient GridZero Mode

The GridZero operating mode minimizes dependence on the grid, optimizing energy use in areas with fluctuating utility incentives and sell-back limitations.

Seamless Installation and Maintenance

Outfitted with smart programming wizards and dual input support, the system simplifies the integration of grid and generator inputs, while offering remote monitoring via OPTICS RE for full control and management.

How It Works

The FXR3048A-01 operates by efficiently converting stored DC power from batteries into usable AC power, whether off-grid or grid-connected. Its robust design and intelligent system enhance power management capabilities, catering to both technical and non-technical users.

Sealed and Vented Configurations

The inverter charger is available in both sealed and vented models, providing options that best suit different installation environments and requirements.

Smart Programming Wizards

These intuitive wizards streamline setup and configuration, ensuring fast deployment and hassle-free maintenance of the power system.

OPTICS RE Monitoring

Gain full oversight and control over your energy system from any internet-enabled device, ensuring optimal management and performance.

Specifications

Instantaneous Power (100ms)	6000VA
Surge Power (5 sec)	5400VA
Peak Power (30 min)	3200VA
Continuous Power Rating (@ 25C)	3000VA
Nominal DC Input Voltage	48VDC
AC Output Voltage (selectable)	120VAC (100-130VAC)
AC Output Frequency (selectable)	60Hz (50Hz)
Continuous AC Output Current (@ 25C)	25AAC
Typical Efficiency	93%
Total Harmonic Distortion	Typical: <2% Maximum: <5%
Output Voltage Regulation	2.5%
DC Input Voltage Range	42 to 68VDC
Warranty	Standard 5 year, extended 10 year available
Weight (lb/kg)	Unit: 62 / 29 Shipping: 67 / 30
Temperature Range	Rated: -20 to 50C Operating: -40 to 60C
Listings/Certifications	UL1741, CSA C22.2 No. 107.1, UL1778
