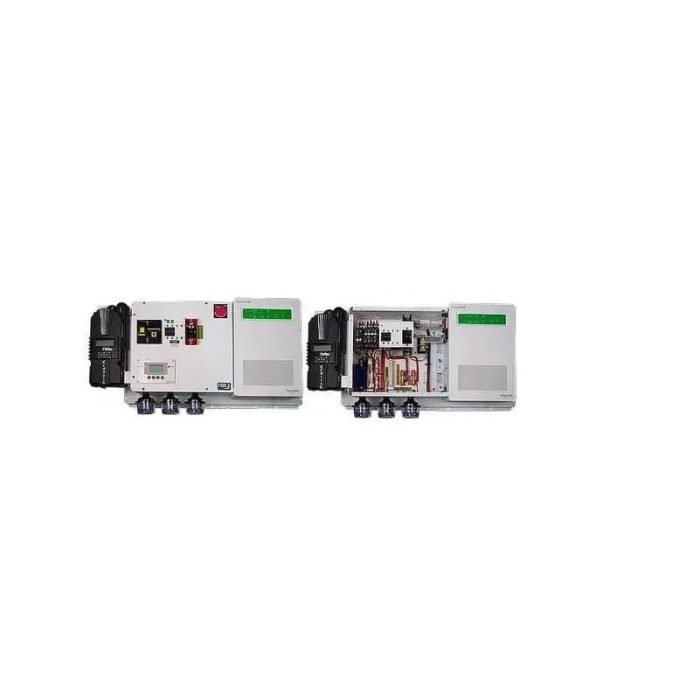

MidNite Solar MNSW4048-CL200 with Classic 200 Breakers

The MidNite Solar MNSW4048-CL200 is a versatile solution featuring integrated Classic 200 breakers. This product is vital for efficient solar energy management, ensuring robust power distribution and reliability for both residential and commercial installations.

Product Features

Integrated High Voltage Breakers

The Classic 200 breakers offer precise voltage control and enhanced safety, integral for maintaining optimal system performance under varying load conditions.

Modular and Stackable Design

This inverter supports parallel operation up to ten units, providing flexibility and scalability with split-phase operation capabilities.

Advanced Grid Compatibility

Compliant with California Rule 21 and Hawaii 14H, this model supports grid interactivity requirements, offering extended operational capabilities with optional CSIP bridge integration.

Optimized Energy Management

Utilizing GridZero technology, the system balances solar, stored, and grid power, reducing grid dependency and maximizing the use of renewable sources.

Efficient Power Handling

Achieving up to 96% peak efficiency, the unit delivers continuous power with dual AC inputs, adapting seamlessly to grid or generator sources as needed.

How It Works

The MNSW4048-CL200 functions as an integral part of a solar energy setup, seamlessly managing power flows between different energy sources and loads via intelligent control systems.

Dual AC Inputs

Allowing simultaneous connection to grid and generator sources, the dual AC inputs enhance system flexibility without the need for external switching.

Powerful Inverter Capabilities

Equipped with advanced inverter technology, it efficiently converts DC from solar panels to AC, supporting a wide range of electrical devices.

Smart Charging Solutions

The unit provides sophisticated battery charging options, compatible with various battery chemistries including lithium-ion and AGM, ensuring optimal energy storage and utilization.

Specifications

Model	MNSW4048-CL200
Instantaneous Power (100ms)	16970VA
Surge Power (5 sec)	12000VA
Peak Power (30 min)	9000VA
Continuous Power Rating	8000VA
Nominal DC Input Voltage	48VDC
AC Output Voltage	120/240VAC (Selectable: 200-260VAC)
AC Output Frequency	60Hz (Selectable: 50Hz)
Typical Efficiency	93%
CEC Weighted Efficiency	92.5%
Total Harmonic Distortion	Typical: <2%, Maximum: <5%
Output Voltage Regulation	±2%
Warranty	Standard 5 year, extended 10 year available
Weight	Unit: 125 lb (56.7 kg), Shipping: 140 lb (63.5 kg)
Dimensions (HxWxD)	Unit: 28 x 16 x 8.7 in (71.1 x 40.6 x 22.1 cm)
