MidNite Solar 1000 Amp Shunt with 50mV Output – MNSHUNT-1000/50

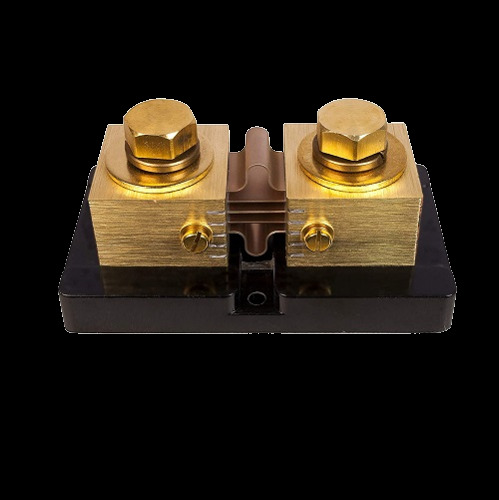

The MidNite Solar MNSHUNT-1000/50 is designed to accurately measure high currents across a range of applications such as renewable energy systems and industrial equipment. It is crafted to ensure precise and safe current measurement, featuring a solid construction that meets rigorous industry standards. This shunt provides a dependable solution for installations requiring robust and reliable tools.

Product Features

Exceptional Current Rating

This device supports an impressive current rating of 1000 amps, making it ideal for high-demand applications. Its design ensures that it operates effectively under heavy loads, maintaining accuracy and reliability.

Advanced Resistance Materials

Constructed with resistance blades made from Manganin metal, this shunt minimizes temperature-induced resistance changes, ensuring stable performance across varying conditions.

Superior Heat Dissipation

Featuring a copper terminal block and brass hardware, the shunt efficiently dissipates heat, preventing overheating and ensuring long-term durability and performance.

Durable Construction

The high-strength phenolic base makes installation and use straightforward, while its structure adheres to A-A-55524 requirements, ensuring compliance and user safety.

Flexible Output Options

Available with either a 50mV or 100mV output, the MNSHUNT-1000 offers flexibility for different measurement needs, accommodating various setups and requirements.

How It Works

This high-current DC shunt operates by creating a small, precise voltage drop as current flows through it, enabling accurate measurement of electrical current. By connecting to measurement devices, it effectively translates high-current passes into readable data without compromising safety or performance.

Manganin Resistance Blades

The manganin resistance blades are crucial for minimizing temperature effects, ensuring stable and accurate measurements even in fluctuating environmental conditions.

Copper Terminal Block

The copper terminal block is integral in maintaining reliable connections and supporting efficient heat dissipation, which extends the operational life of the shunt.

Phenolic Base Support

The phenolic base provides robust support and easy installation, contributing to the overall reliability and stability of the setup.

Specifications
