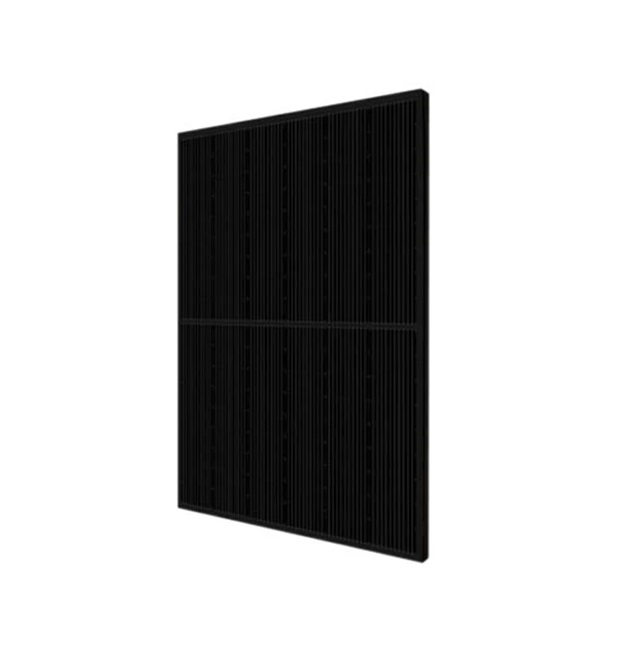

Jinko Eagle 430W Bifacial Solar Panel – JKM430M-72HLM-TV

The Jinko Solar JKM430M-72HLM-TV panel offers high efficiency and robust performance, making it an excellent choice for various solar applications. With a bifacial design, the panel benefits from increased energy yield, generating more power with its rear-side exposure. Its durable construction and advanced technology ensure long-term reliability and efficiency, even in challenging environmental conditions.

Product Features

Enhanced Power Output

The Jinko Solar JKM430M-72HLM-TV panel delivers exceptional power output, offering a maximum power of 430 watts. This feature ensures substantial energy generation, meeting both residential and commercial needs efficiently.

Bifacial Technology

This panel incorporates bifacial technology, which allows it to capture sunlight from both the front and rear sides. This enhances overall energy production by utilizing reflected light, thereby increasing energy efficiency.

Durable Anti-reflective Coating

Equipped with a high-transmission, low-iron, tempered glass featuring anti-reflective coating, the panel maximizes light absorption, ensuring consistent performance even under low-light conditions.

Robust Frame Construction

The anodized aluminum alloy frame provides superior strength and protection against harsh weather, including snow, wind, and rain, thus ensuring longevity and sustained performance.

Advanced Performance Warranty

Jinko Solar guarantees a 30-year linear performance warranty, promising reliability and peace of mind with minimum power loss over time, maximizing value from your investment.

How It Works

The Jinko Solar JKM430M-72HLM-TV panel operates efficiently by converting sunlight into electricity through its advanced monocrystalline cells. The bifacial design, paired with robust construction, ensures optimal performance in diverse environmental conditions.

Monocrystalline Cell Efficiency

The high-efficiency monocrystalline cells are designed to optimize energy conversion, providing consistent and reliable power output in various sunlight conditions.

Bifacial Energy Harnessing

The panel’s bifacial architecture allows it to harness additional energy from sunlight that reflects off surrounding surfaces, boosting overall power generation.

Temperature Resilience

This solar panel is engineered to remain operational in extreme temperatures ranging from -40C to +85C, ensuring dependable performance across different climates.

Specifications

Cell Type	Mono PERC, 166A166mm
Number of Cells	144 (6A24)
Dimensions	2096A1039A40mm (82.52A40.91A1.57inch)
Weight	25.47kg (56.15 lbs)
Front Glass	3.2mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Output Cables	12 AWG, 1400mm (55.12in) or Customized Length
Operating Temperature	-40C to +85C
Maximum System Voltage	1500VDC (IEC)
Power Tolerance	0~+3%
Temperature Coefficient of Pmax	-0.35%/C
Nominal Operating Cell Temperature (NOCT)	452C
Refer. Bifacial Factor	705%
