Fronius Primo 5.0-1 208-240vac Lite – 4,21,00,63,801
MPN Number:
DESCRIPTION
DOCUMENTS
DESCRIPTION

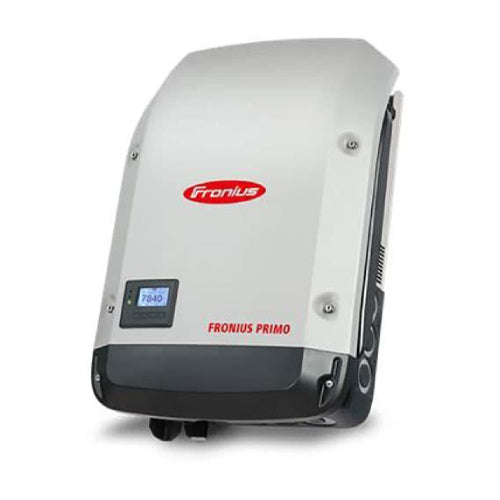

Fronius Primo 5.0-1 208-240vac Lite Inverter Overview
The Fronius Primo 5.0-1 Lite inverter, identified by the part number Fronius 4,21,00,63,801, is crafted for superior solar energy conversion. This single-phase inverter is designed for residential use, offering robust features such as dual power point trackers, a wide input voltage range, and high system voltage capabilities. It stands out with its advanced SnapINverter hinge mounting system, making installation straightforward and secure.
Product Features
SnapINverter Mounting System
Equipped with the SnapINverter hinge mounting system, this inverter ensures easy and secure installation, aligning with the target keyword Fronius 4,21,00,63,801 for exceptional user experience.
Dual Power Point Trackers
Features dual maximum power point tracking to optimize energy conversion, enhancing the product’s functionality and efficiency in diverse solar conditions.
High Voltage Capacity
With a high system voltage range, the inverter accommodates various solar panel configurations, improving energy capture and overall system efficiency.
Versatile Usage
This inverter supports both indoor and outdoor installations, reflecting its adaptability and user-friendly design tailored to different environments.
Smart Grid Ready
Integrated with smart grid capabilities, ensuring future readiness and efficiency in energy management within evolving grid environments.
How It Works
The Fronius Primo 5.0-1 Lite inverter operates by converting the direct current (DC) generated by solar panels into alternating current (AC) usable by home appliances. Its advanced features streamline this process, ensuring efficient energy transfer.
Solar Energy Collection
The solar panels gather sunlight and convert it into DC electricity, which is sent to the inverter for conversion to AC electricity.
DC to AC Conversion
The inverter efficiently transforms solar-generated DC to AC power, enabling its use in standard household electrical systems.
Voltage Optimization and Safety
The inverter automatically adjusts to optimal voltage levels and includes protective features like DC reverse polarity and ground fault protection.
Specifications
| Recommended PV Power (kWp) | 4.0 – 7.8 kW |
| Max Usable Input Current (MPPT) | 18 A / 18 A |
| Max Array Short Circuit Current | 27 A / 27 A |
| Nominal Input Voltage | 420 V |
| Operating Voltage Range | 80 V – 600 V |
| DC Startup Voltage | 80 V |
| Max Output Power | 5,000 VA/5,000 VA |
| Frequency Range | 45.0 – 55.0 Hz / 50 – 66 Hz |
| Nominal Operating Frequency | 60 Hz |
| Max Efficiency | 96.9% |
