Enphase Microinverter 366VA 208/240V 60/72-Cell MC4 – IQ7A-72-M-US
MPN Number:
DESCRIPTION
DOCUMENTS
DESCRIPTION

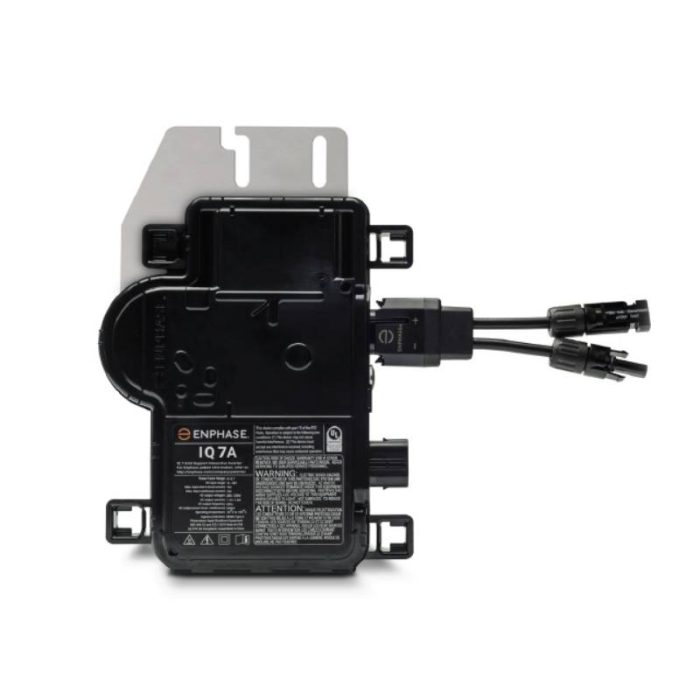

Enphase IQ7A-72-M-US
The Enphase IQ 7A Microinverter with Integrated MC4 connectors is designed for high efficiency and easy installation. This product, which pairs with 295 W'”460 W PV modules, delivers reliable power conversion and simplifies the solar energy setup process. Its key benefits include support for various PV module types, compliance with grid standards, and long-term durability with a 25-year warranty.
Product Features
High Power Conversion
The Enphase IQ 7A Microinverter achieves peak output power of 366 VA at 240 VAC and 295 VA at 208 VAC, making it ideal for high output applications.
Streamlined Installation
Designed for ease of setup, this microinverter is lightweight with an improved two-wire cabling system, enabling faster installation while meeting rapid shutdown requirements.
Superior Efficiency and Reliability
Optimized for 60-cell and 72-cell PV modules, the IQ 7A offers a CEC efficiency of 97.0%, backed by over a million hours of rigorous testing.
Grid Support Ready
Complying with advanced grid support requirements, the Enphase IQ 7A adapts to varying grid profiles, requiring an Envoy and Internet connection for full functionality.
Comprehensive Communication and Monitoring
This microinverter supports power line communication and can be monitored through Enlighten Manager and MyEnlighten, ensuring users stay informed about performance metrics.
How It Works
The Enphase IQ 7A Microinverter functions by converting the direct current (DC) generated by solar panels into alternating current (AC) used by home appliances. This conversion happens smoothly, thanks to its advanced components and design, enabling seamless integration into existing electric systems.
DC to AC Conversion
This core component efficiently converts solar energy into usable AC power, supporting different PV module configurations.
Built-in Compliance Mechanisms
The embedded rapid shutdown feature ensures the system meets safety standards, providing peace of mind for users and installers.
Grid and User Communication
By utilizing power line communication, the microinverter establishes reliable data transmission pathways for system monitoring and adjustments.
Specifications
| Commonly Used Module Pairings | 295 W'”460 W+ |
| Module Compatibility | 60/120-half-cell and 72/144-half-cell PV modules |
| Maximum Input DC Voltage | 58 V |
| Power Point Tracking Voltage Range | 18 V'”58 V |
| Min/Max Start Voltage | 33 V / 58 V |
| Peak Output Power | 366 VA (240 VAC), 295 VA (208 VAC) |
| Nominal Frequency | 60 Hz |
| Efficiency | 97.0% (240 VAC), 96.5% (208 VAC) |
| Operating Temperature Range | -40A‚ºC to +60A‚ºC |
| Enclosure Rating | Class II double-insulated, NEMA Type 6 |
