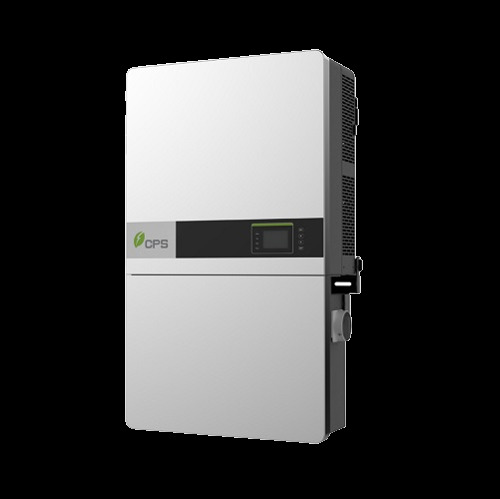

Chint 50kW 3Phase String Inverter 3 MPPT Std Wirebox 1000VDC – SCA50KTL-DO/US-A
MPN Number:
Chint 50kW 3-Phase Inverter with 3 MPPT and Standard Wirebox
The Chint Power SCA50KTL-DO/US-A is an advanced string inverter designed for grid-tied photovoltaic systems. With three Maximum Power Point Trackers (MPPT) and a standard wirebox, this inverter ensures optimal energy capture and flexibility in system design. Its robust construction supports high conversion efficiencies up to 98.8%, making it an ideal choice for maximizing the energy production of solar installations.
Product Features
High Conversion Efficiency
Incorporating a sophisticated 3-level conversion topology with Space-Vector PWM, the Chint Power inverter achieves a maximum efficiency of 98.8%, offering substantial energy savings and improved return on investment.
Grid Adaptability
This inverter features selectable grid standards, including IEEE 1547-2018 and CA Rule 21, providing excellent adaptability for various grid conditions and requirements, ensuring reliable energy integration.
Flexible Communication
Designed with compatibility in mind, it supports standard CPS Modbus RS485 and SunSpec Modbus protocols, along with optional FlexOM gateway card communication for enhanced remote monitoring and control capabilities.
Wide DC Input Range
The inverter accommodates a wide operating DC input voltage range from 200V to 950V, allowing for flexibility in system design while supporting a maximum DC input voltage of 1000V.
Extended Service Life
Featuring the usage of thin-film and electrolytic capacitors, this inverter is built for longevity, ensuring consistent performance and durability over its operational lifespan.
How It Works
The Chint Power inverter efficiently converts DC power from photovoltaic panels into AC power suitable for grid use. Its integrated Maximum Power Point Trackers and intelligent cooling systems ensure optimal performance and reliability.
Main Inverter Enclosure
The robust enclosure protects internal components, providing durability and reliability in various environmental conditions while housing all key operational elements.
Cooling Fans
Advanced cooling fans contribute to maintaining optimal operating temperatures, enhancing the efficiency and lifespan of the inverter.
User LCD Display
The user-friendly LCD display provides real-time data and system status, allowing for easy operation and monitoring at a glance.
Specifications
| Model | SCA50KTL-DO/US-A |
| Maximum Efficiency | 98.8% |
| MPPT Channels | 3 |
| Input Voltage Range | 200V – 950V DC |
| Maximum Input Voltage | 1000V DC |
| Grid Standards | IEEE 1547-2018, CA Rule 21 |
| Communication Protocols | Modbus RS485, SunSpec Modbus, FlexOM (optional) |
| Temperature Management | Cooling Fans |
| Display | LCD Display with Key Buttons |
| Dimensions | Refer to Product Manual |
