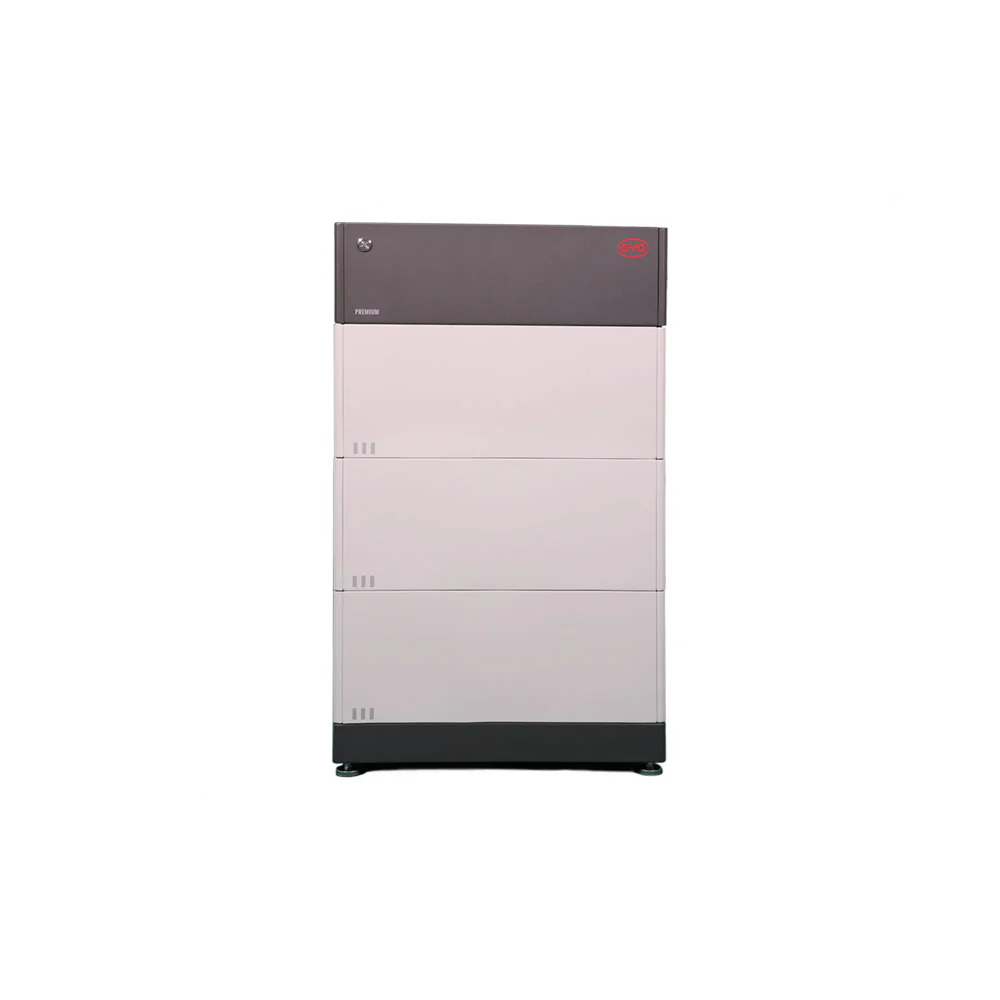

BYD Battery-Box Premium HVL US 12kWh System | Includes Three 4kWh LiFePO4 Batteries – MPN HVL 12.0

The BYD Battery-Box Premium HVL US 12kWh Battery System is an innovative energy storage solution designed for efficiency, reliability, and scalability. This system features three 4kWh LiFePO4 battery modules, offering a total usable capacity of 12kWh. Ideal for residential and small commercial applications, it delivers exceptional performance with advanced safety standards. The scalable design ensures future-proof energy storage by allowing additional modules to be integrated seamlessly. With its wide inverter compatibility and support for renewable energy systems, the HVL 12.0 is perfect for enhancing solar power self-consumption or providing reliable backup during grid outages. Built with the latest lithium iron phosphate (LiFePO4) technology, it ensures safety, longevity, and efficiency.

BYD Battery-Box Premium HVL US 12kWh Key Features

• Scalable Modular Design: Comprises three 4kWh LiFePO4 battery modules, expandable to 32kWh.
• Wide Voltage Range: Operates between 150V and 480V for diverse application needs.
• High Energy Efficiency: Achieves up to 96% round-trip efficiency.
• Safety Certifications: UL9540A, IEC62619, UN38.3 standards ensure safe operations.
• Compact and Lightweight: Space-saving design for easy installation and integration.

How It Works

1. Modular Assembly

The system is pre-assembled with three 4kWh modules, connected in series to achieve 12kWh capacity. The plug-and-play design simplifies installation and maintenance.

2. Efficient Energy Storage

Energy from solar panels or the grid is stored in advanced lithium iron phosphate batteries. The system ensures minimal energy loss during charge and discharge cycles.

3. Scalable and Future-Proof

Expand the system as your energy needs grow by adding up to five additional modules to increase capacity without modifying the existing setup.

Specifications

Components	Details
HVL Battery Module	4 kWh, 51.2 V, 99.2 lb
Number of Modules	3
Usable Energy [1]	12 kWh
Max Output Current [2]	50 A
Peak Output Current [2]	75 A, 3 s
Nominal Voltage	153.6 V
Operating Voltage	120 – 173 V
Dimensions(H/W/D) Inch	39.2 x 23.0 x 11.7
Weight lbs.	330.7
Operating Temperature	14°F to 122°F
Battery Type	Lithium lron Phosphate (LiFePO4)
Communication	CAN / RS485
Protection Rating	NEMA 3R
Round-trip Efficiency	≥ 96%
Certification	UL9540 / UL9540A / UL1973 / IEC60730 / FCC / UN38.3 / OGPE / CEC / SGIP
Applications	ON Grid / ON Grid+Backup / OFF Grid
Warranty [3]	10 Years

Compatibility

The BYD Battery-Box Premium HVL US 12kWh is compatible with a wide range of inverters. Some of the compatible models include:

• SMA SBSE Series
• GOODWE A-ES and A-BP Series
• Solis S6-EH1P Series Inverters

Certification

The BYD Battery-Box Premium HVL US 12kWh has achieved important certifications, ensuring its safety and reliability for various applications. These include FCC compliance, UL1973 certification, and MSDS documentation. These certifications underscore the product’s adherence to high-quality standards and regulatory requirements.
