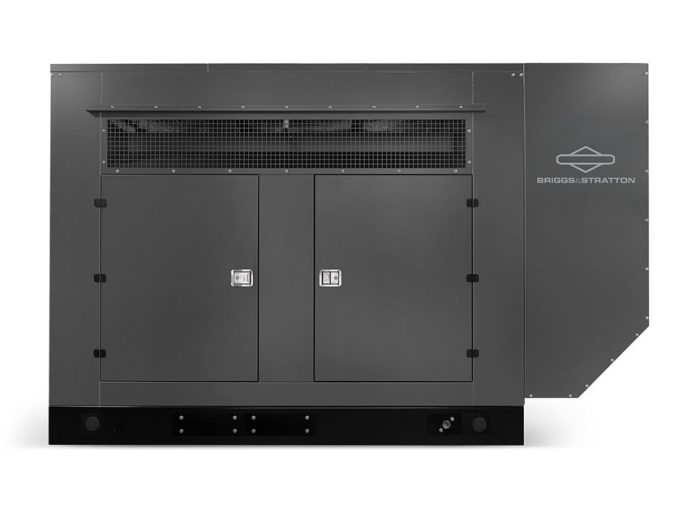

Briggs & Stratton 080015 Liquid Cooled LPV 125kW Standby Generator
Designed to power large businesses, our 125kW1 standby generator ensures that your business keeps running when the power goes out. Our commercial-grade generator will give you year-round peace of mind keeping your business running at peak performance.
MPN Number:
DESCRIPTION
DOCUMENTS
DESCRIPTION
The Briggs and Stratton Standby Power 125kW Generator ensures top reliability and performance. Featuring an 8.8L V8 engine with 230 HP, it offers precise frequency regulation and exceptional voltage stability. Equipped with a Deep Sea controller, web-based monitoring, and operates efficiently in harsh conditions. It complies with UL and cUL certifications, ensuring quiet and dependable standby power.
Briggs and Stratton 125kW Generator Features
InfoHub™ Wireless Monitoring
Lets you monitor your generator’s status on your computer, tablet or smartphone sending maintenance reminders so your Briggs and Stratton Generator is always ready for the next power outage. Sold separately.Symphony Choice Power Management
Manages the distribution of power to your selected appliances automatically. Load management ensures the generator won’t overload and shutdown so your family can continue with its daily routine. Transfer switch and modules sold separately.Best in Class Warranty
Covers parts, labor and travel for the full-length of the Warranty.Made in USA
Briggs & Stratton Generators assembled and Engineered in the USA with domestic and foreign parts.Corrosion Resistant Durable Enclosure
Made from automotive-grade galvanneal steel to resist rust. Its advanced powder coat paint process results in years of protections against chips and abrasions.Flexible Placement Options
With the ability to install your Briggs and Stratton Standby Generator as close as 18 inches from your home.Superior Customer Support
Our product is backed by our call center experts. Complete our web form below or visit the customer support portal to get your questions answered.Ratings
This Briggs and Stratton 125kW generator is rated in accordance with UL (Underwriters Laboratories) 2200 (stationary engine generator assemblies) and CSA (Canadian Standards Association) standard C22.2 No.100-14 (motors and generators).Installations Guidelines
You must Strictly comply with All applicable codes, industry standards, laws, regulations, and the provided installation manual. Running engines release Carbon Monoxide, an odorless, colorless, and poisonous gas. To ensure safety, keep exhaust gas away from any windows, doors, ventilation intakes, or crawl spaces. We strongly advise consulting the installation manual for additional guidance. This manual offers specific instructions for placing the Briggs and Stratton 125kW Standby Generator. Carefully consider and follow the stipulations of NFPA 37, which require businesses to install and maintain Carbon Monoxide Detectors. This step is crucial for safeguarding the well-being of everyone on the premises.Specifications
| OVERVIEW | |
| Brand | Briggs & Stratton® |
| Model Number | 080015 |
| Rated Countries | US / Canada |
| Rated AC Voltage (Volts) | 120 / 240 |
| Frequency (Hz) | 60 |
| Generator Breaker (Amps) | 600 |
| Operating Ambient Temperature (°C / °F) | -28 – 40 / -20 – 104 |
| Running Amperage (Amps) | 521 |
| Running Watts¹ (LP) (kW / kVA) | 125 / 125 |
| Running Amperage – Continuous Duty (International Use Only) (Amps) | 416 |
| Running Watts – Continuous Duty (International Use Only) (LP) (kW / kVA) | 100 / 100 |
| Phase | 1 |
| Engine | |
| Engine Brand/Manufacturer | PSI |
| Model Type | 8.8L Industrial Powertrain, 4-cycle |
| Aspiration | Turbo Charge Air Cooled |
| Speed (RPM) | 1800 |
| Displacement (L / ci) | 8.8 / 535 |
| Compression Ratio | 10.1:1 |
| Rated Horsepower (gross hp) | 230 |
| Governor Type | Electronic |
| Bore & Stroke (mm / in) | 110.5 x 114.3 / 4.35 x 4.5 |
| Number of Cylinders | 8 |
| Cylinder Arrangement | V8 |
| Start Type | Automatic |
| Frequency Regulation Steady State, No Load to Full Load (%) | +/- 0.5 |
| Frequency Regulation No Load to Full Load | Isochronous |
| Air Filter Type | Dry |
| Low Oil Pressure Sensor | Yes |
| Low Coolant Sensor | Yes |
| Engine Block Heater | Yes |
| Engine – Output Deratings | |
| Rated Temperature (°C / °F) | 25 / 77 |
| Rated Altitude (Above Sea Level) (m / ft) | 366 / 1200 |
| Temperature Derate | 1.5% for every 5.6°C (10°F) above rated temp |
| Altitude Derate | 2.5% for every 305m (1000ft) above rated altitude |
| Sound Rating² | |
| No Load dB(A) | 77 |
| Air Induction System | |
| Combustion Air (m³/min / cfm) | 10.3 / 365 |
| Lubrication System | |
| Type | Full Pressure |
| Oil Capacity (L / qt) | 7.6 / 8 |
| Oil Filter (Quantity / Type) | 1 / Cartridge |
| Cooling System | |
| Cooling System Type | Radiator, Closed-Loop |
| Coolant Capacity (Engine Only) (L / qt) | 13.7 / 14.5 |
| Coolant Capacity (System Total) (L / qt) | 49.2 / 52 |
| Heat Rejected to Cooling Water at Rated Load (kcal/sec / BTU/min) | 21.1 / 5021 |
| Water Pump Type | Centrifugal |
| Electrical System | |
| Ignition System | Individual Ignition Coil |
| Battery Quantity | 1 |
| Battery Voltage (VDC) | 12 |
| Battery CCA (Amps) | 925 |
| Starter Motor Voltage (VDC) | 12 |
| Battery Charging Alternator | |
| Ground (Negative / Positive) | Negative |
| Nominal Voltage (VDC) | 12 |
| Maximum Amperage (Amps) | 70 |
| Exhaust System | |
| Exhaust Manifold Type | Dry |
| Exhaust Flow at Rated Load (m3/min / cfm) | 33 / 1178 |
| Exhaust Temperature at Rated Load (°C / °F) | 732 / 1350 |
| Maximum Allowable Back Pressure (kPa / in Hg) | 10.2 / 3.0 |
| Fuel System | |
| Fuel Type | LPV |
| Fuel Supply Line Inlet | 1 1/2” NPT |
| Recommended Fuel, Lower Heating Value Minimum (MJ/m3 / BTU/ft3) | 87.1 / 2338 |
| Fuel Supply Pressure (mbar / in H2O) | 17-28 / 7-11 |
| Fuel Consumption3 | |
| No Load, LP (BTU/hr) | 348,000 |
| No Load, LP (ft3/hr) | 140 |
| No Load, LP (m3/hr) | 4.0 |
| Half Load, LP (BTU/hr) | 938,000 |
| Half Load, LP (ft3/hr) | 375 |
| Half Load, LP (m3/hr) | 10.7 |
| Full Load, LP (BTU/hr) | 1,567,000 |
| Full Load, LP (ft3/hr) | 627 |
| Full Load, LP (m3/hr) | 17.8 |
| Alternator Specifications | |
| Alternator Type | Brushless, 4-Lead |
| Alternator Manufacturer | MeccAlte |
| Alternator Model Number | ECO38-1LN/4 |
| Frequency (Hz) | 60 |
| Exciter Type – Primary Alternator | Auxiliary Winding |
| Insulation Rating (Class) | H |
| Designed Temperature Rise (°C) | 125 |
| Bearing (Quantity / Type) | 1 / Sealed |
| Coupling | Flexible Disk |
| Amortisseur Windings | Full |
| Number of Poles | 4 |
| Voltage Regulator | Digital, 1-phase sensing |
| Voltage Regulation, No Load to Full Load | +/- 1.0 |
| One-step Load Acceptance | 100% of Rating |
| Sustained Short-Circuit Current | 300% of Rated Current for 20 Seconds |
| Total Harmonic Distortion (THD), No Load to Full Load (%) | < 4.5 |
| Controls/Instrumentation | |
| Controller Manufacturer | Deep Sea |
| Controller | DSE 7310 MKII |
| Charger | Marinco 6 Amp |
| Starting | 2-wire |
| Alternator Frequency | Yes |
| Real Time Clock | Yes |
| Single & 3-phase Sensing | Yes |
| Accumulated Power Monitoring | Yes |
| Runtime & Downtime Monitoring | Yes |
| Configurable Outputs | Yes |
| Configurable Inputs | Yes |
| Engine Maintenance Alarms | Yes |
| Engine Hour Counter | Yes |
| Engine Runtime Scheduler | Yes |
| Event Log | Yes |
| Web-based Monitoring | Yes |
| Controller Features | |
| Heated Display Option | Yes |
| True 3-phase Generator Sensing | Single-phase |
| Power Monitoring (kW, kVA, kVAR) | Yes |
| Remote Communications (RS232 & RS485) Capable | Yes |
| Configurable Inputs / Outputs | Yes |
| CAN Sensing | Yes |
| Configurable Display Languages | Yes |
| Power Save Mode | Yes |
| Integral PLC Editor | Yes |
| Flexible Sender Inputs | Yes |
| DSE Configuration Suite PC Software | Yes |
| Configurable Event Log (250) | Yes |
| Load Switching, Load Shedding & Dummy Load Outputs | Yes |
| Other Features | |
| Alternator Protection | Yes |
| Battery Rack and Cables | Yes |
| Battery | Yes |
| Electonic, Isochronous Governor | Yes |
| Gas Fuel System | Yes |
| Integral Vibration Isolation | Yes |
| Operation and Installation Manual(s) | Yes |
| Steel Sound Enclosure | Yes |
| Accessories | |
| Liquid Propane Vaporizer Kits | 6504-01 |
| Battery Charger, 9461-02 | 6463-00 |
| Controller Remote Communication Module, DSE 890-01 | 6464-00 |
| Remote Annunciator, DSE 2548-01 | 6465-00 |
| Remote Display, DSE 2510-32 | 6466-00 |
| Emergency Stop Switch, NEMA 4X | 6360-00 |
| Emergency Stop Switch, w/ Cover | 6361-00 |
| Battery Warmer | 6343-00 |
| Battery Cable Lockout | 6335-00 |
| Engine Communication Cable | 6350-00 |
| AVR Communication Cable | 6472-00 |
| Controller Communication Cable, USB-A to USB-B | 6428-00 |
| Remote Annunciator Kit, DSE 2548-01 | 6468-00 |
| Limited Warranty4 | |
| Warranty: Generator, Domestic (Parts / Labor / Travel) (Years) | 3 |
| Warranty: Generator, International (Parts / Labor / Travel) (Years / Hours) | 3 / 1000 |
| Warranty: Engine, Domestic (Parts / Labor / Travel) (Years) | 3 |
| Warranty: Engine, International (Parts / Labor / Travel) (Years / Hours) | 3 / 1000 |
| Warranty: Enclosure, Surface Rust and Corrosion (Parts / Labor / Travel) (Years) | 1 |
| Warranty: Enclosure, Rust Through (Parts / Labor / Travel) (Years) | 2 |
| Certifications | |
| UL | Yes |
| cUL | Yes |
| Weights & Dimensions | |
| Assembled Dimensions (Length x Width x Height) (in / mm) | 135 x 52 x 86 / 3429 x 1321 x 2184 |
| Assembled Weight (lbs / kg) | 5380 / 2440 |
| Packaged Dimensions (Length x Width x Height) (in / mm) | 144 x 58 x 92 / 3658 x 1473 x 2337 |
| Packaged Weight (lbs / kg) | 5563 / 2523 |
