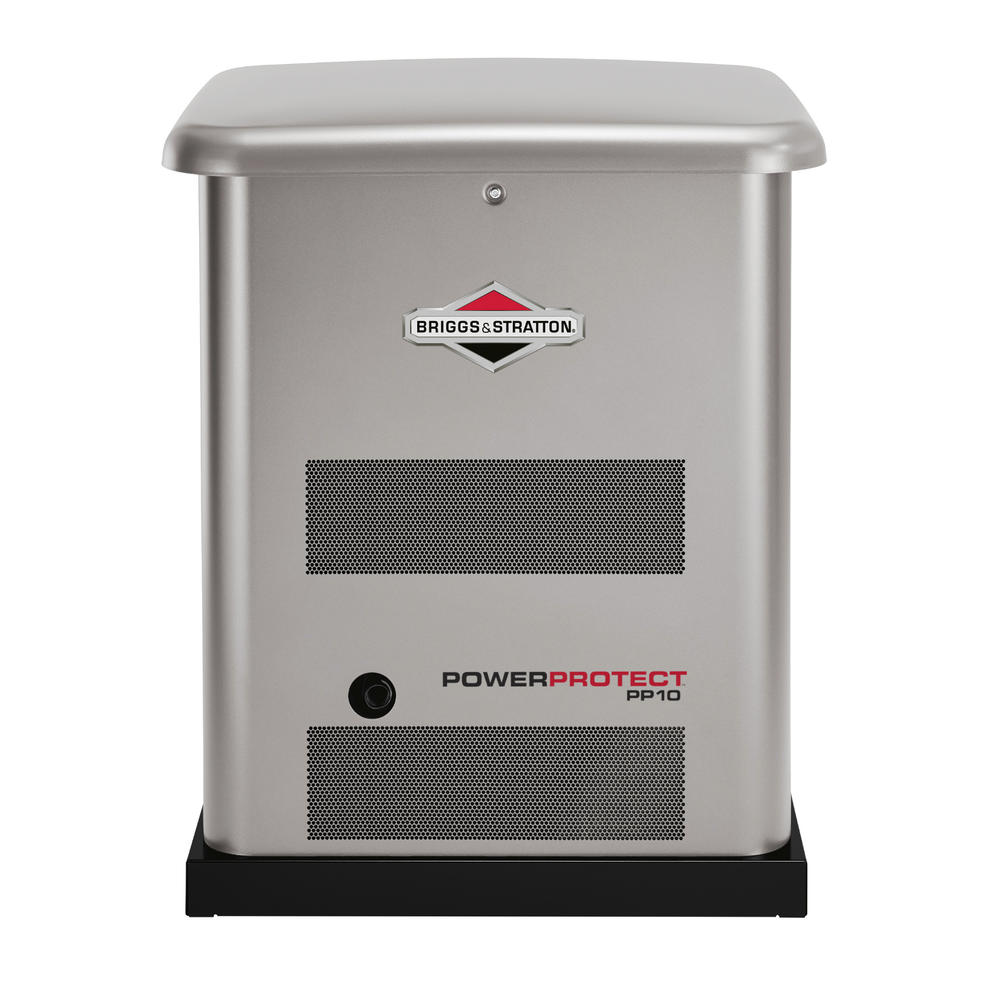

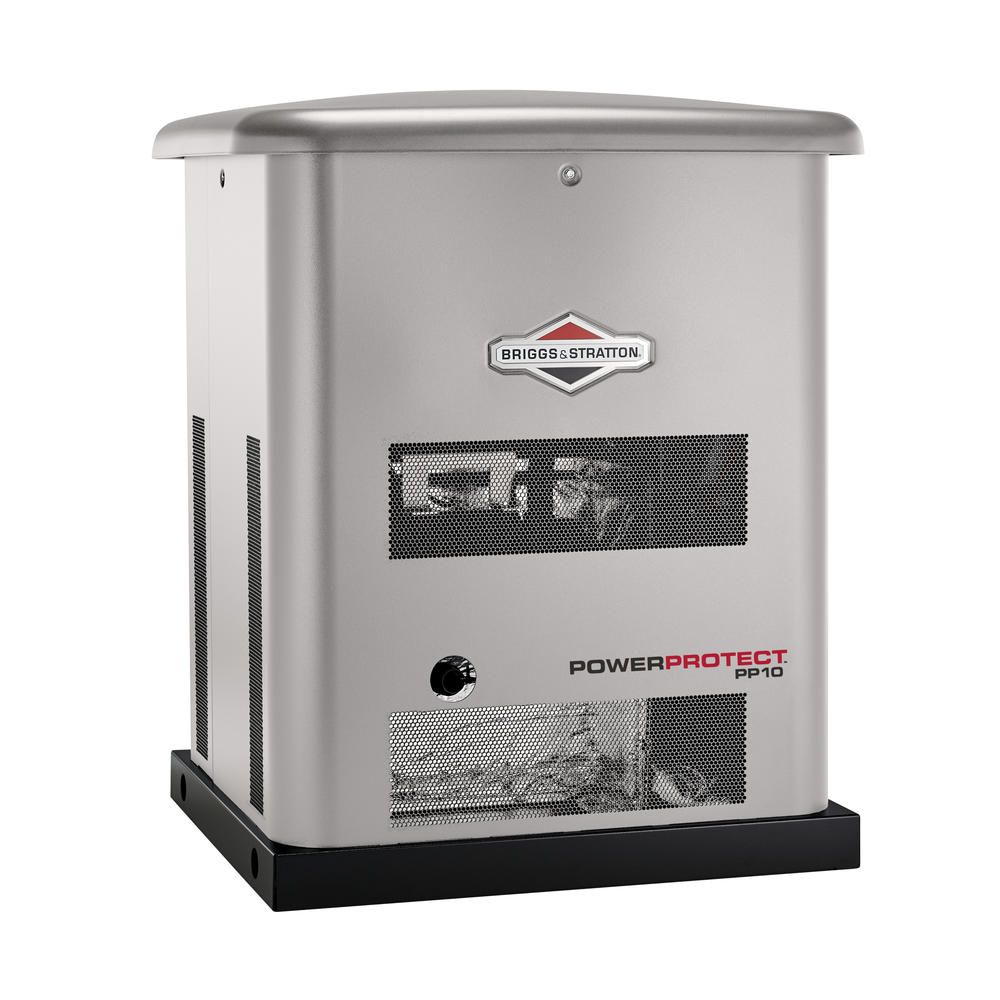

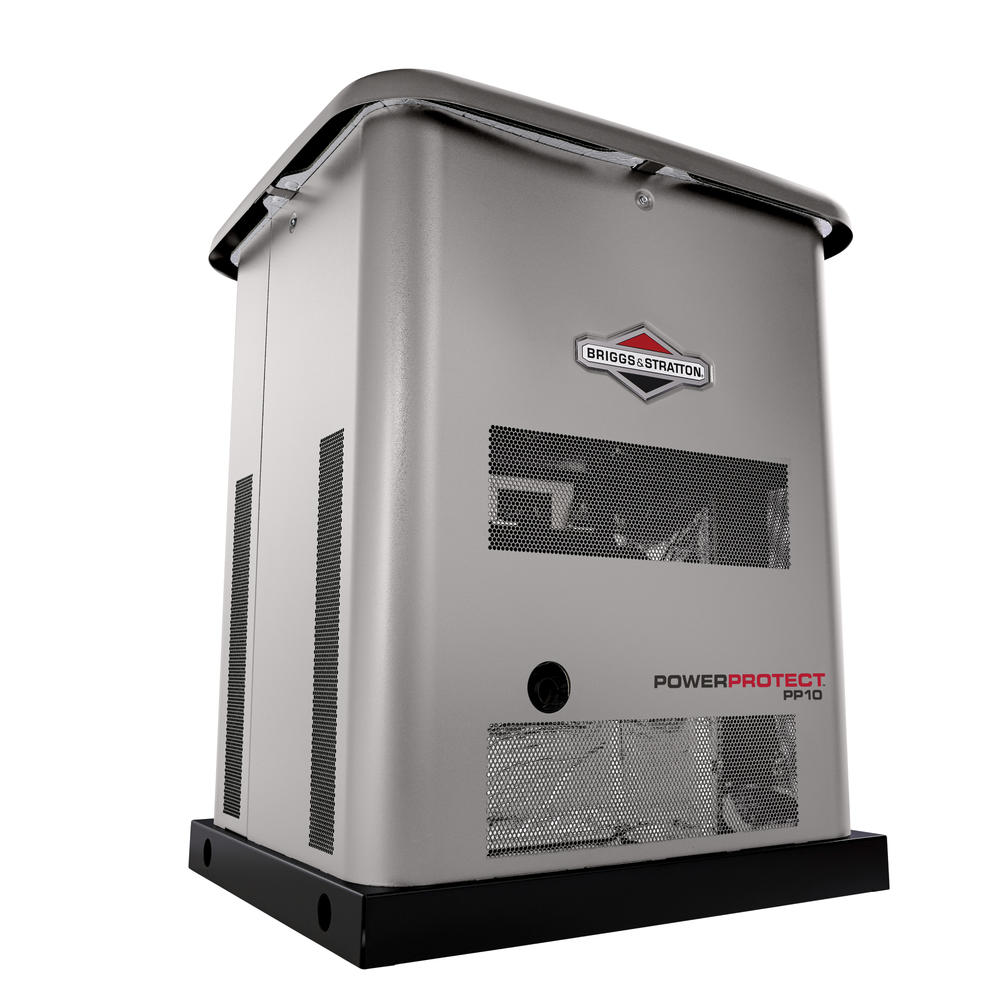

Briggs & Stratton 040684 PP10 PowerProtect™ Vanguard Engine NG/LPV 10kW Home Standby Generator
Equipped with a unique front-facing exhaust for easy placement and installation, our 10kW1 unit ensures all your home’s essential appliances and power needs are covered during even the worst outages.
MPN Number:
DESCRIPTION
DOCUMENTS
DESCRIPTION
The Briggs & Stratton 040684 PP10 PowerProtect Vanguard Engine 10kW Home Standby Generator delivers powerful performance in a compact design. With nearly 50% less footprint than competitors’ similar models, the PP10 offers all the power you need in less space. Its built-in front-facing exhaust allows for versatile placement options during installation, making it adaptable to your specific needs. This generator ensures dependable backup power for your home’s essential appliances, even during the worst outages. Trust the PP10 to keep your home running smoothly, no matter the conditions.
Designed with user convenience in mind, the PP10 boasts a straightforward installation process and low maintenance requirements, providing peace of mind and effortless operation. Trust the Briggs & Stratton 040684 PP10 PowerProtect Vanguard Engine 10kW Home Standby Generator to keep your home running smoothly, no matter the circumstances.
Briggs and Stratton 10kW Generator Features
Warranty
The 10kW Home Standby Generator has 6-Year limited Warranty of parts, labor, and travel included for the entire Term. The Industry’s most Comprehensive Warranty over time.2Compact Size
50% smaller than competitive Generators in its class3 allows for a Hassle Free Installation.Assembled and Engineered in USA
Briggs & Stratton Generators are proudly designed and assembled in the USA, ensuring high-quality standards and superior craftsmanship.Commercial-Grade Vanguard Engine
This powerful engine, built in the USA, is designed for commercial applications, providing reliable and consistent power for your home’s electronics.Flexible Placement Options
Approved for installation as close as 18 inches to a building, offering easy service access to both the engine and the alternator for convenient maintenance.Symphony® II Power Management System (optional)
Customizable to your home’s needs offering prioritized Whole House Power with a more Affordable Briggs and Stratton 10kW Standby Generator.Schaeffer Full Synthetic Generator Oil
Shields Engine to reduce wear and tear and allows enhanced Cold Weather start-up Protection to -20˚F, ensuring your generator runs smoothly in harsh climate.Specifications
OVERVIEW |
|
| Brand | Briggs & Stratton® |
| Series Name | Power Protect™ |
| Model Name | PP10 |
| Model Number | 40684 |
| Rated AC Voltage (Volts) | 120 / 240 |
| Frequency (Hz) | 60 |
| Generator Breaker (Amps) | 50 |
| Operating Ambient Temperature (°C / °F) | -130 |
| Running Amperage, Standby (LP / NG) (Amps) | 41.7 / 33.3 |
| Running Power, Standby (LP / NG) (kW) | 101 / 8 |
| Power Factor | 1 |
| Exercise Duration | 20 minutes |
Engine |
|
| Engine Brand/Manufacturer | Vanguard® |
| Model Type | M35 |
| Aspiration | Naturally Aspirated |
| Speed (RPM) | 3600 |
| Displacement (ci/cc) | 35 / 570 |
| Compression Ratio | 8.3:1 |
| Governor Type | Mechanical |
| Bore & Stroke (mm / in) | 71.9 x 70.1 / 2.83 x 2.76 |
| Cylinder Block | Aluminum with Cast Iron Sleeve |
| Valve Arrangement | OHV |
| Engine Cylinder Configuration | V |
| Number of Cylinders | 2 |
| Start Type | Automatic |
| Frequency Regulation Steady State, No Load to Full Load (%) | (+/-) 2.5 |
| Air Filter Type | Dry |
| Low Oil Pressure Switch | Yes |
| Engine Oil Heater | Yes |
| Rated Temperature (°C / °F) | 25 / 77 |
Sound Rating2 |
|
| Normal Operating Sound2 dB(A) | 67 |
Lubrication System |
|
| Type | Full Pressure |
| Oil Capacity (oz / L) | 48 / 1.42 |
| Oil Filter (Quantity / Type) | 1 / Cartridge |
| Oil Brand | Schaeffer |
| Recommended Oil | 5W30 Full Synthetic |
Electrical System |
|
| Ignition System | Variable Timing |
| Battery Quantity | 1 |
| Battery Voltage (VDC) | 12 |
| Battery CCA (Amps) | 540 |
| Battery Grouping Size | 26 or 51 |
| Starter Motor Voltage (VDC) | 12 |
Fuel System & Consumption3 |
|
| Fuel Type | NG / LPV |
| Fuel Supply Line Inlet | 3/4” NPT |
| Recommended Fuel, Lower Heating Value Minimum (MJ/m3 / BTU/ft3) | (NG: 34.3 / 904) (LPV: 87.1 / 2338) |
| Fuel Supply Pressure (mbar / in H2O) | (NG: 9-17 / 3.5-7) (LPV: 28-34 / 11-14) |
| No Load, NG (BTU/hr) | 60000 |
| No Load, NG (ft3/hr) | 60 |
| Half Load, NG (BTU/hr) | 111000 |
| Half Load, NG (ft3/hr) | 111 |
| Full Load, NG (BTU/hr) | 169000 |
| Full Load, NG (ft3/hr) | 169 |
| No Load, LP (BTU/hr) | 59000 |
| No Load, LP (ft3/hr) | 24 |
| No Load, LP (gal/hr) | 0.7 |
| Half Load, LP (BTU/hr) | 107000 |
| Half Load, LP (ft3/hr) | 43 |
| Half Load, LP (gal/hr) | 1.2 |
| Full Load, LP (BTU/hr) | 164000 |
| Full Load, LP (ft3/hr) | 66 |
| Full Load, LP (gal/hr) | 1.9 |
Alternator Specifications |
|
| Alternator Type | Self-Excited, Rotating Field |
| Alternator Manufacturer | Briggs & Stratton |
| Frequency (Hz) | 60 |
| Phase | 1 |
| Insulation Rating (Class) | F |
| Designed Temperature Rise (°C) | 105 |
| Bearing (Quantity / Type) | 1 / Sealed |
| Number of Poles | 2 |
| Voltage Regulator | Brushed / Electronic |
Controls/Instrumentation |
|
| Controller | Briggs & Stratton |
| Charger | Integrated |
| Starting | AMF |
| LED Digital Display | Yes |
| Alternator Frequency | Yes |
| Real Time Clock | Yes |
| Engine Hour Counter | Yes |
| Engine Runtime Scheduler | Yes |
| Low Oil Pressure Shutdown | Yes |
| High Temperature Shutdown | Yes |
| Fault Code Display | Yes |
Other Features |
|
| Battery Rack and Cables | Yes |
| Integral Vibration Isolation | Yes |
| Oil Drain Extension | Yes |
| Operation and Installation Manual(s) | Yes |
Accessories |
|
| Battery Warmer | 6182 |
| Maintenance Kit | 6873 |
| Remote Status Monitor | 6144 |
| Fuel Regulator Warmer | 6845 |
| InfoHub™ Universal – Cellular | 6574 |
Limited Warranty4 |
|
| Warranty: Generator, Domestic & Canada (Parts / Labor / Travel) — Years | 6 |
| Warranty: Enclosure, Surface Rust and Corrosion (Parts / Labor / Travel) — Years | 1 |
| Warranty: Enclosure, Rust Through (Parts / Labor / Travel) — Years | 2 |
Certifications |
|
| UL | Yes |
| cUL | Yes |
| Massachusetts Plumbers and Gasfitters Listing | Yes |
Weights & Dimensions |
|
| Assembled Dimensions (Length x Width x Height) (in / mm) | 28 x 24.5 x 34.8 / 712 x 622 x 883 |
| Assembled Weight (lbs / kg) | 272 / 123 |
| Packaged Dimensions (Length x Width x Height) (in / mm) | 39 x 33.5 x 42 / 991 x 851 x 1067 |
| Packaged Weight (lbs / kg) | 330 / 150 |
| Outline and Pad Layout Drawing | 80104458 |
