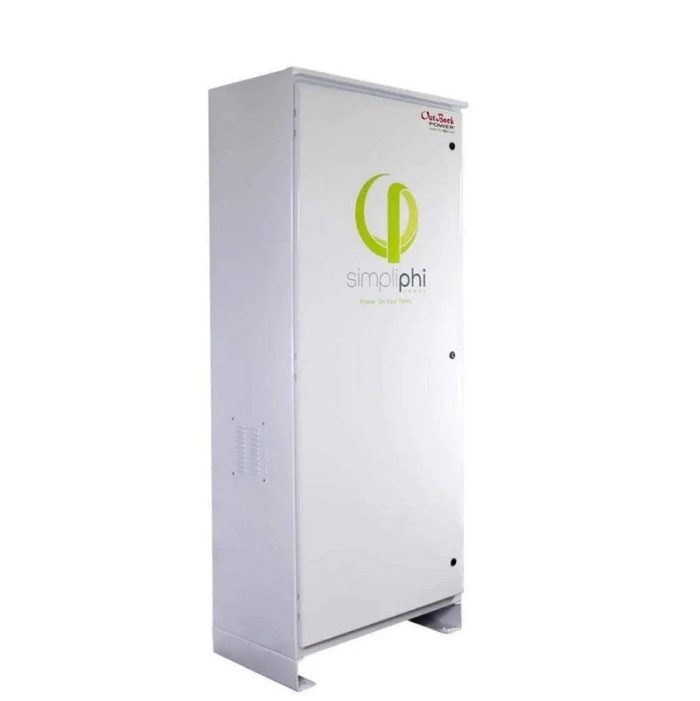

Simpliphi AccESS w/ 4 x PHI 3.5 kWh Batteries & 2 x CC – A-4PHI-2CC-OB
MPN Number:
Simpliphi AccESS with PHI 3.5 kWh Batteries
Discover the fully integrated energy storage system, Briggs and Stratton A-4PHI-2CC-OB, crafted for secure and efficient power management. Designed for seamless usage, it offers unmatched reliability and control over energy utilization, tailored towards both residential and commercial applications.
Product Features
Seamless Energy Management
With the AccESS system, manage and store solar energy effortlessly, ensuring power security even during outages. Ideal for enhancing power independence and reducing reliance on the grid.
Robust Battery Technology
Equipped with advanced lithium ferro phosphate batteries, the system is non-toxic, boasts a long lifespan, and includes a vital battery management setup for safety and longevity.
Integrated System Control
The system includes OutBack Power inverters and controllers that adapt seamlessly to grid-tied or off-grid configurations, providing exceptional flexibility and control.
High Efficiency and Safety
Benefit from a high round-trip efficiency rate of 98% and extended operating temperature capabilities, maintaining performance without overheating risks.
Remote Monitoring Capability
Gain full oversight over your power system from anywhere via web or mobile apps, ensuring your system operates smoothly at any time.
How It Works
This energy solution integrates multiple components like inverters, batteries, and controllers to intelligently manage and store solar power. It provides a user-friendly interface for operation and monitoring.
OutBack Power Inverter/Charger
This component ensures consistent power delivery by efficiently converting stored energy for household use, accommodating both grid-tied and off-grid structures.
Advanced Lithium Batteries
Delivering up to 14 kWh, these batteries safely store energy, allowing for maximum usage flexibility and extended operational lifespan.
Charge Controller FLEXmax 80
Enhances solar array performance by optimizing power output and ensuring efficient energy transfer into the storage system.
Specifications
| Dimensions (W x H x D) | 29.5 x 76 x 20 in (75 x 193 x 51 cm) |
| Weight | 600 lb (272.155 kg) without batteries |
| Enclosure Rating | NEMA 3R Outdoor rated |
| Operating Temperature | -4 to 122 F (-20 to 50 C) |
| Inverter/Charger | OutBack Power Radian GS8048A |
| AC Output | 120/240V AC, 60 Hz |
| Rated Power | 8 kW (7 kW maximum from battery) |
| Max Charge Rate | 115A DC, 7.2 kW |
| Battery Capacity | 14 kWh @ C/2 |
| Warranty Period | 10 years |
